Build firmware for
the Arduino

Describe your idea in plain English. EmbedFlow writes the code, maps the wiring, and flashes it — straight from your browser.

NO CODE/ZERO INSTALL/WEB FLASH

WHAT YOU GET BACK

Code and wiring, ready to flash.

Every generation hands back a compiling sketch and a pin-perfect wiring map — constrained to the exact board you picked.

EmbedFlowWeather Station ESP32 DevKit V1HardwareSerialOutputBuild Flash

FILES

esp32-devkit main.ino platformio.ini

Chat

A BME280 weather station that shows °C on an OLED.

Done — reads the BME280 over I²C and prints to the OLED, wired to your ESP32's real pins.

main.ino compiles

// reads a BME280, prints °C to an OLED
#include <Adafruit_BME280.h>
#include <Adafruit_SSD1306.h>
Adafruit_BME280 bme;
Adafruit_SSD1306 oled(128, 64, &Wire);
void setup() {
  Wire.begin(21, 22);   // SDA, SCL
  bme.begin(0x76);
  oled.begin(SSD1306_SWITCHCAPVCC, 0x3C);
}

Hit Build → Flash to push it to your board.

Change a pin, add a part, attach a datasheet…

HARDWAREPINS IN USE6

ESP32 DevKit V1Espressif · ESP32

BOARD PINSIGNALROLE

3V3BME280 VCCPWR

GNDBME280 GNDGND

GPIO21BME280 SDASDA

GPIO22BME280 SCLSCL

GPIO21OLED SDASDA

GPIO22OLED SCLSCL

Checked against the board GPIO map

Built for makers, tested on real silicon Flash over USB · no install

Boards supported

130+

Sensors & components

Chip families

100%

In-browser · zero install

Describe

Pick a board, say what it does

Generate

AI writes code + schematic

Preview

Simulate before you flash

Flash

Straight to your board over USB

Constrained to real pins

The AI only sees your board's actual GPIO map, peripherals and limits — no hallucinated pins.

Open board registry

Anyone with a kit can add & verify a board file. Coverage grows with the community.

Browser flashing

ESP & Pico flash straight from Chrome over USB. Everything else falls back to a download.

SUPPORTED HARDWARE

Start with a board you own

7 boards at launch — every one community-tested on real silicon.

Verified

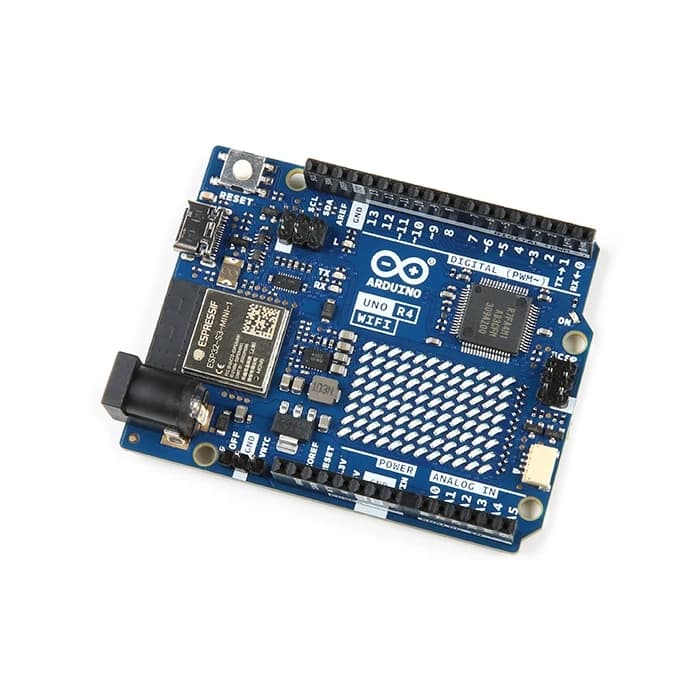

Arduino UNO R4 WiFi

Arduino · Renesas RA4M1

Uno reborn — 32-bit Renesas MCU, on-board Wi-Fi + BLE, and a 12×8 LED matrix.

48MHz

CLOCK

32KB

RAM

256KB

FLASH

Web flash ~30s

Verified

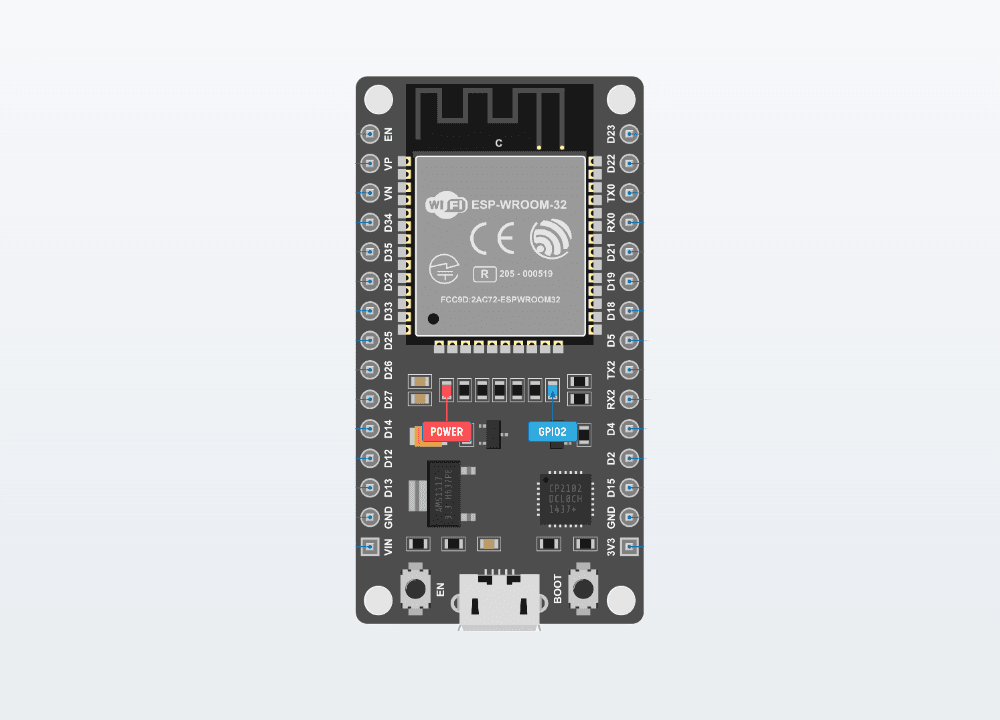

ESP32 DevKit V1

Espressif · ESP32

The wifi+BLE workhorse. Golden path — flashes straight from the browser.

240MHz

CLOCK

520KB

RAM

4MB

FLASH

Web flash ~30s

Verified

Raspberry Pi Pico

Raspberry Pi · RP2040

$4 dual-core M0+ with PIO. Drag-and-drop flashing over BOOTSEL.

133MHz

CLOCK

264KB

RAM

2MB

FLASH

Web flash ~30s

Verified

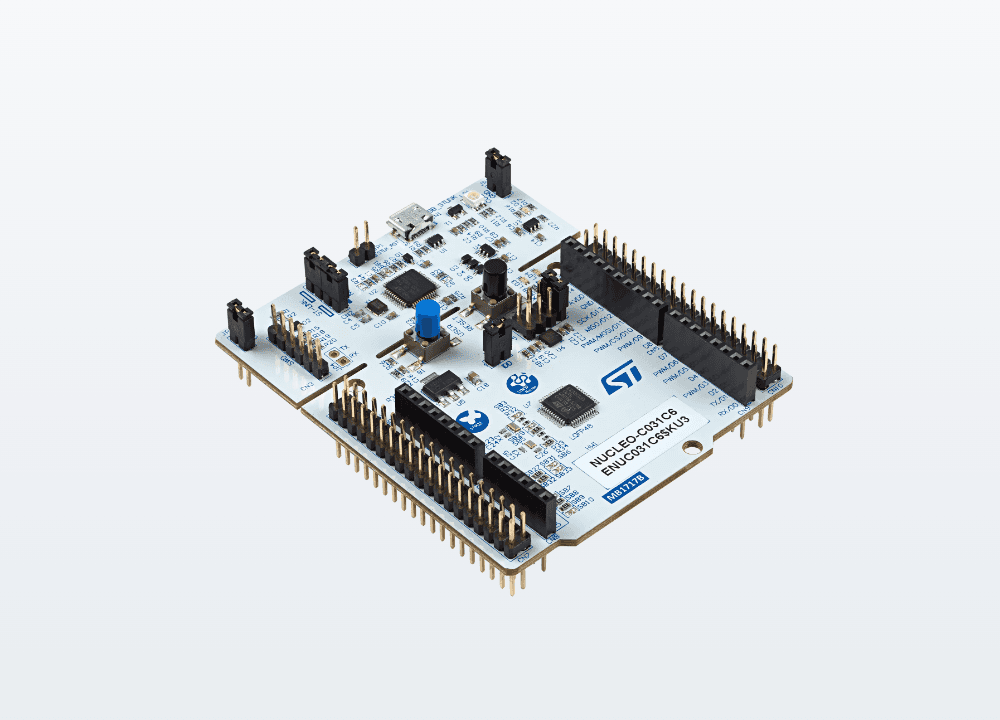

STM32 Nucleo-C031C6

STMicro · STM32C0

ARM Cortex-M0+ with an on-board ST-LINK — nothing extra to wire.

48MHz

CLOCK

12KB

RAM

32KB

FLASH

ST-LINK ~30s

Verified

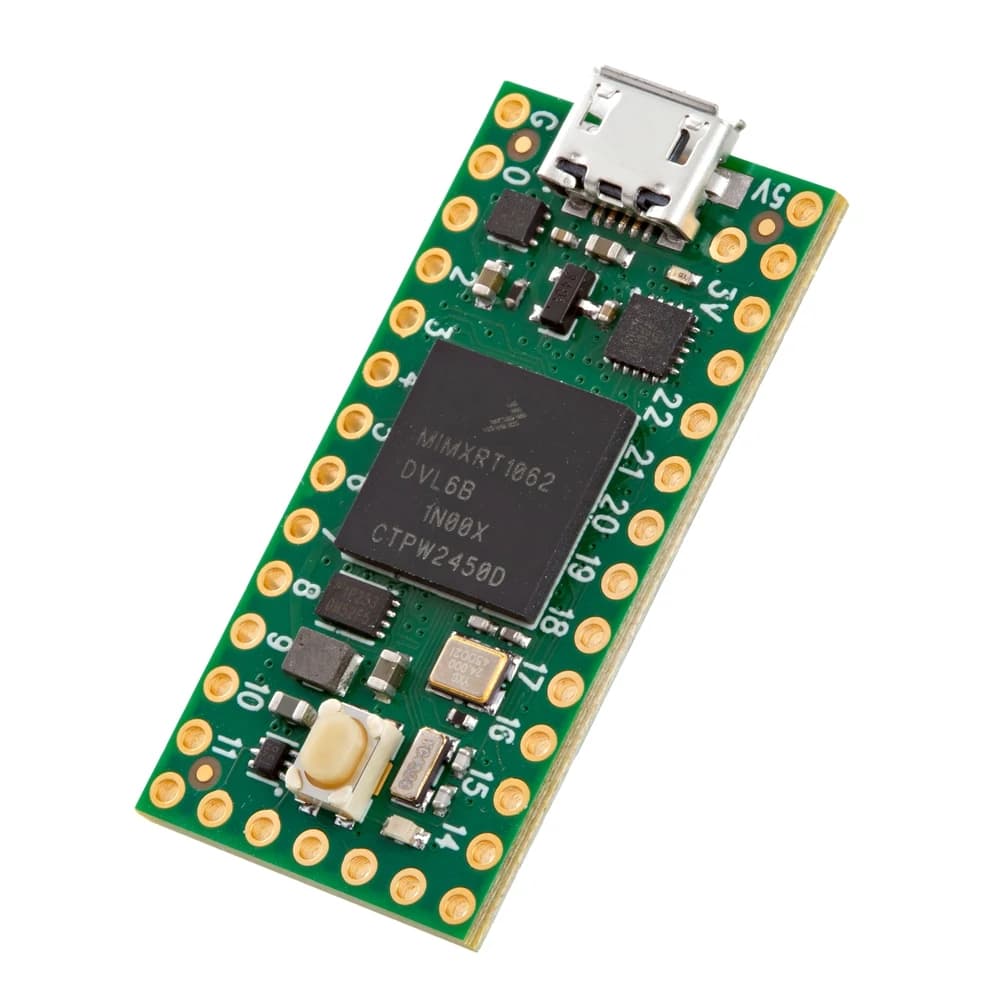

Teensy 4.0

PJRC · IMXRT1062 (Cortex-M7)

600MHz M7 monster in a breadboard-friendly footprint. Flashes over USB.

600MHz

CLOCK

1MB

RAM

2MB

FLASH

Web flash ~30s

Verified

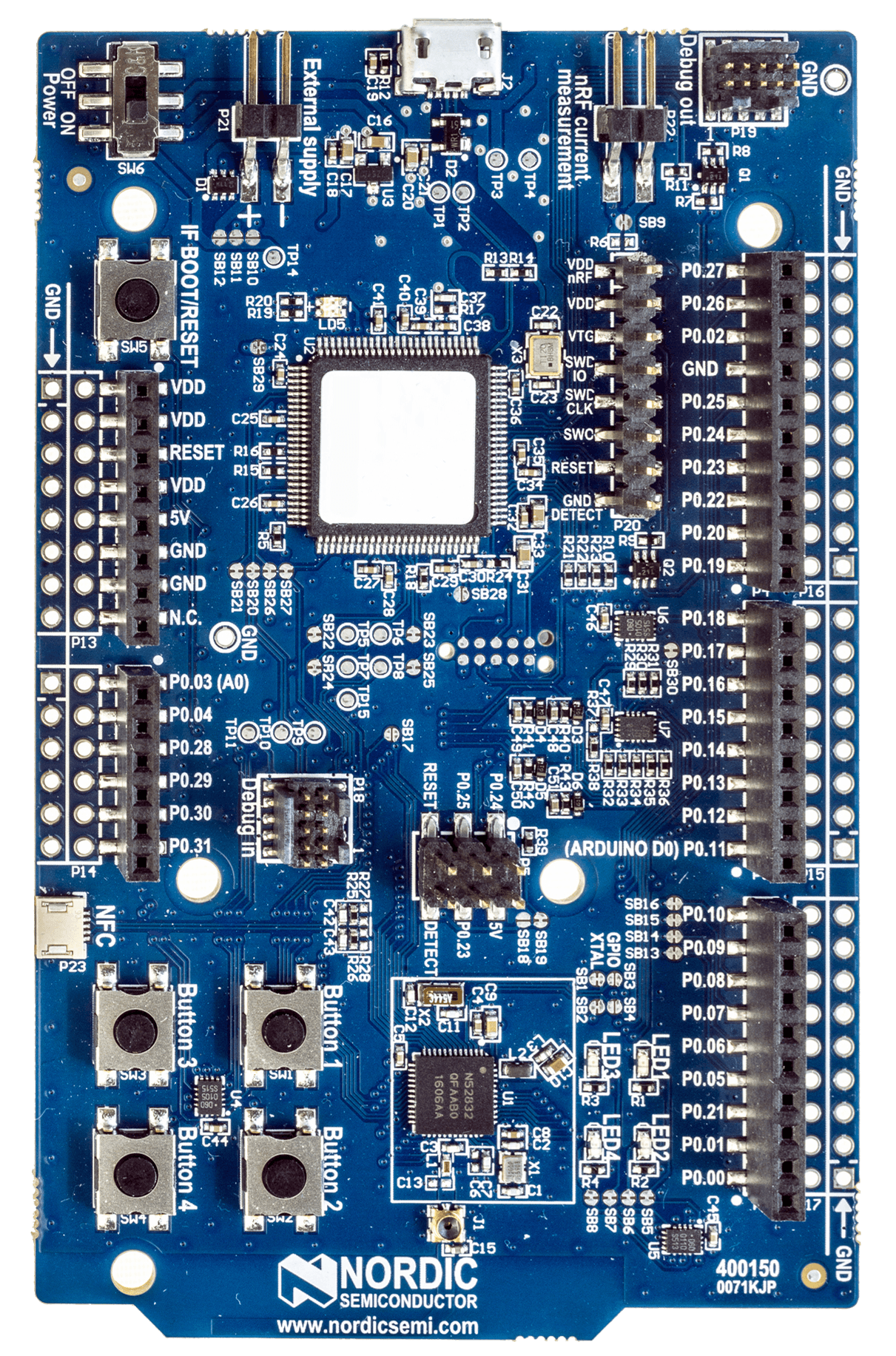

nRF52-DK

Nordic · nRF52832 (Cortex-M4)

BLE + NFC dev kit with on-board debugger. The Bluetooth workhorse.

64MHz

CLOCK

64KB

RAM

512KB

FLASH

J-Link ~30s

Verified

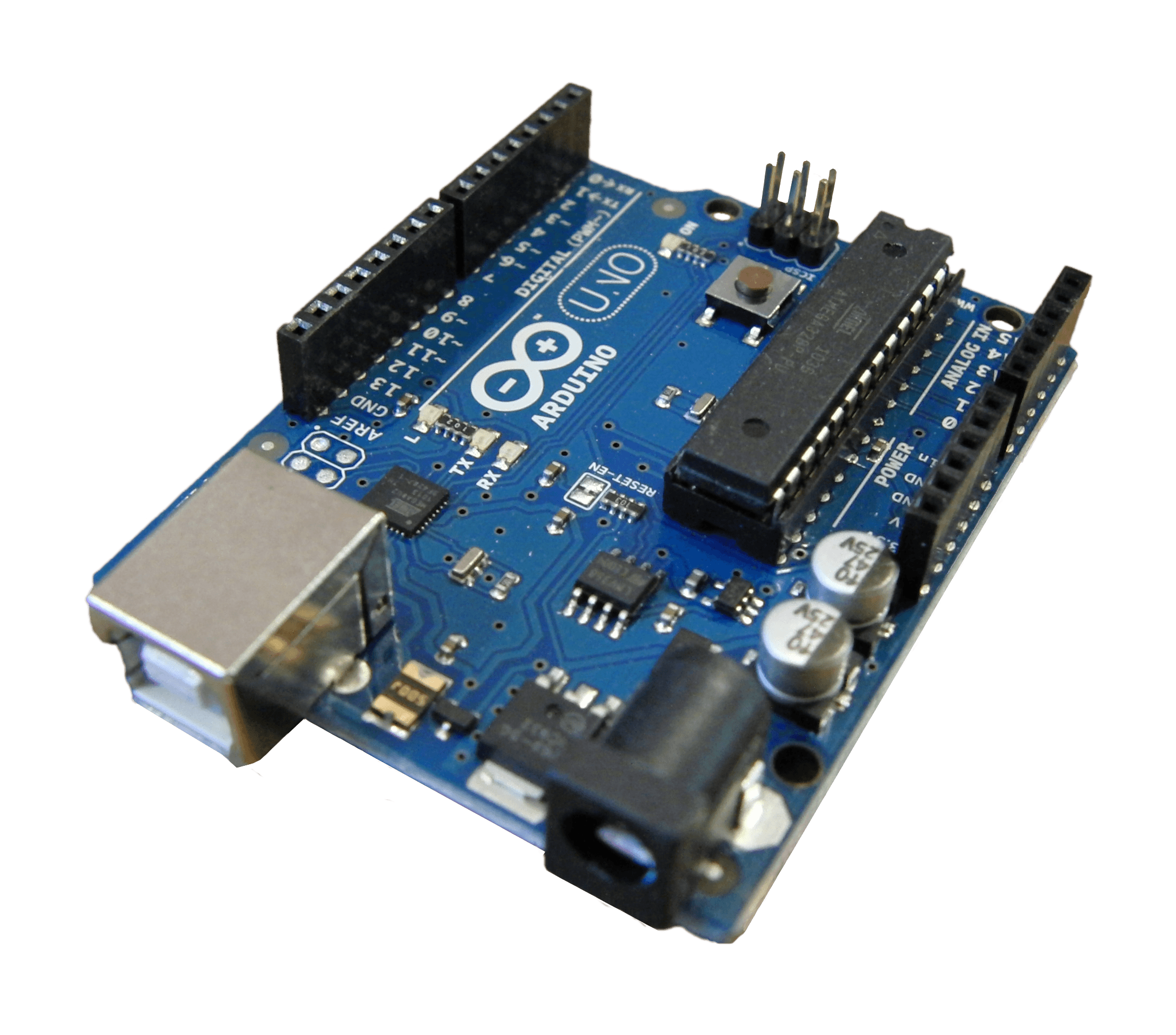

Arduino Uno R3

Arduino · ATmega328P

The board every tutorial starts with. 5V classic — and fully simulatable.

16MHz

CLOCK

2KB

RAM

32KB

FLASH

Serial ~30s

Beyond code generation

Agentic AI firmware bench.

Five capabilities that pick up where code generation ends — reading your schematics and datasheets, sourcing your parts, and driving the real instruments on your bench. Every output is grounded in the source you gave it and checked against live data.

BOARD SYNTHESIS

Bring your own board.

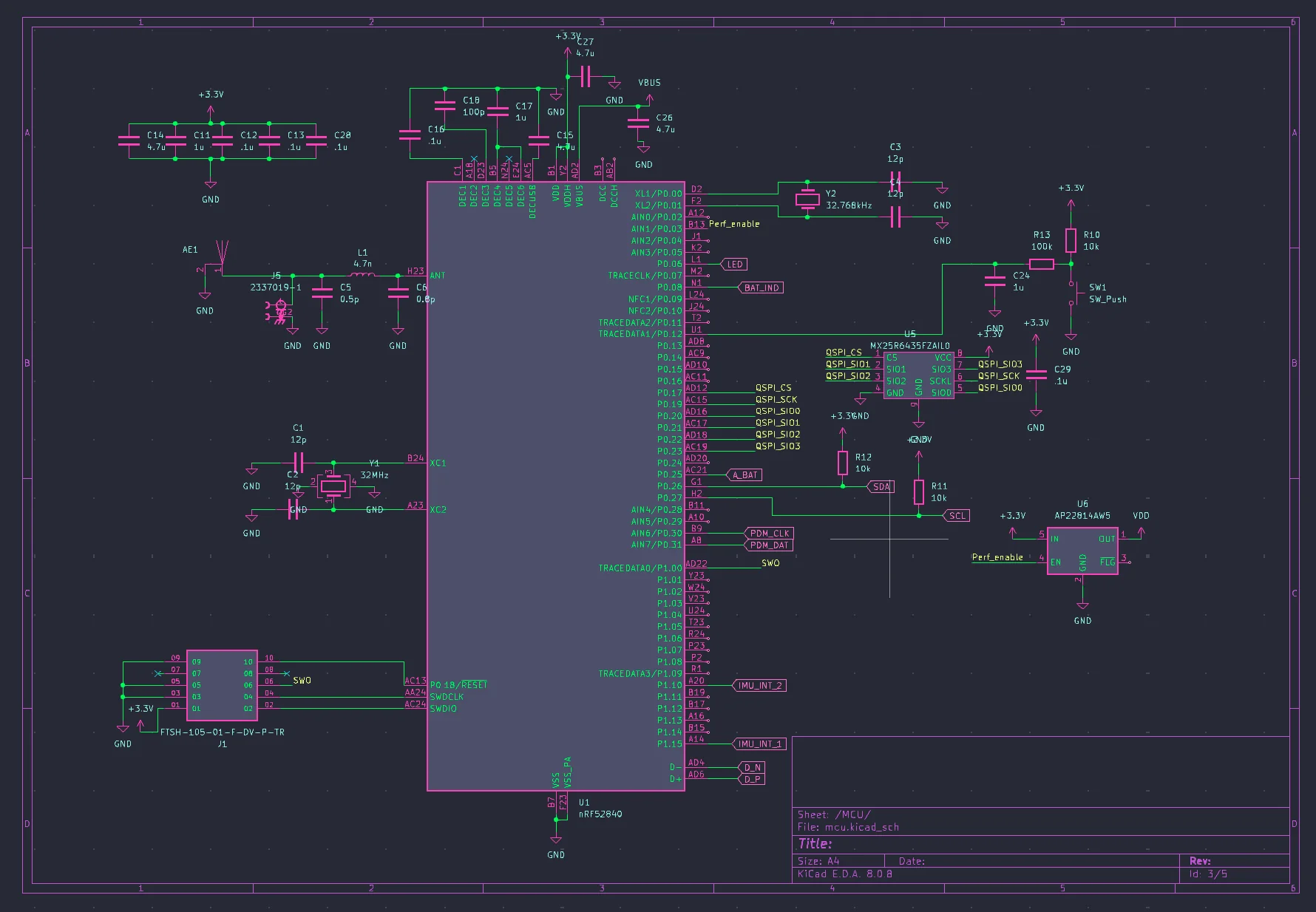

Upload a schematic — PDF, PNG or JPG — and EmbedFlow reads it alongside the MCU datasheet to generate a PlatformIO board manifest and a matching Arduino pin variant, mapped to your board's exact pins, peripherals and clock. Your one-off hardware becomes a first-class target.


          original-schematic-STM32F103C8T6-Blue_Pill.pdf


schematic read

CUSTOM BOARD

Schematic → Board Definition

SOURCE

STM32F103C8T6-Blue_Pill.pdf

PDF · 148 KB

DETECTED MCU

PartSTM32F103C8T6
CPUCortex-M3
F_CPU72 MHz
Flash64 KB
RAM20 KB

Verified vs datasheet

2 / 4

100%

5.23, 101.69 mm

GENERATED FILES 3 files

~$0.01672 · 7,366 tok · gemini-2.5-flash

boards/stm32f103c8_vccgnd.json JSON

{ "build": {
  "core": "stm32",
  "cpu": "cortex-m3",
  "mcu": "stm32f103c8t6",
  "f_cpu": "72000000L" },
"name": "VCC-GND STM32F103" }

variants/…/pins_arduino.h CPP

#define HSE_VALUE 8000000UL
#define LED_BUILTIN PC13 // p.3
#define USB_DP PA12 // p.2
#define USB_DM PA11

README.md MD

Reads schematic PDF, PNG & JPG

Maps every pin, peripheral & power rail

Cross-checks wiring against the datasheet

DATASHEET COMPILER

From datasheet to driver.

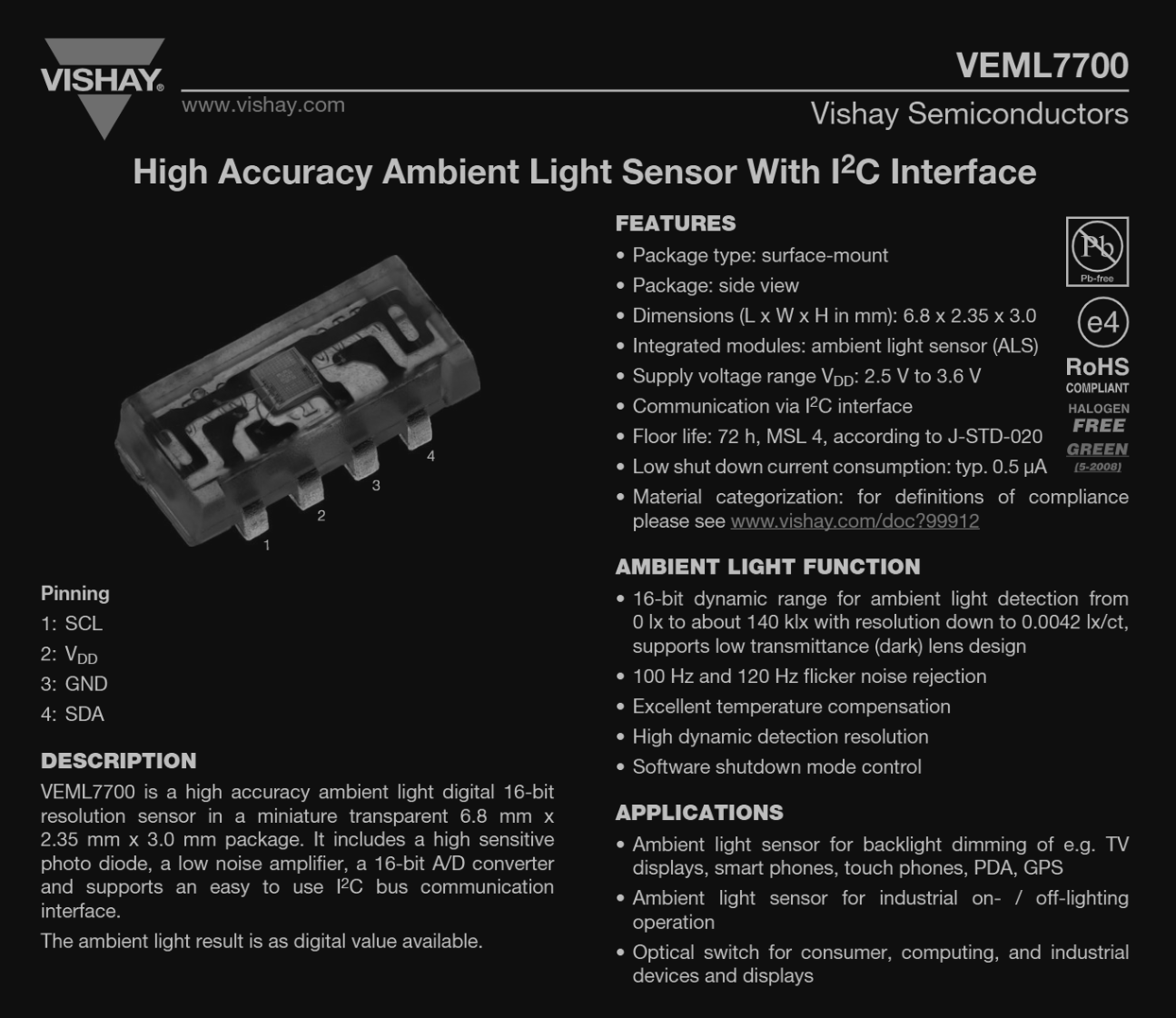

Upload any sensor's datasheet — even a scanned, Chinese-only PDF — and get a ready-to-use Arduino driver: the header, the implementation and an example sketch. Every register address and constant cites the exact datasheet page it came from, so you can check each line instead of trusting a black box.


          veml7700.pdf


datasheet read

DRIVER GENERATOR

Datasheet → Arduino driver

SOURCE

veml7700.pdf

PDF · 289 KB

DETECTED SENSOR

PartVEML7700
VendorVishay
TypeAmbient light
BusI²C
Addr0x10

Verified vs datasheet

1 / 14

100%

GENERATED DRIVER 3 files

~$0.02989 · 15,780 tok · gemini-2.5-flash

VEML7700.h CPP

// I2C address (7-bit)
#define VEML7700_ADDR 0x10 // p.6
#define ALS_CONF_0 0x00 // p.7
#define ALS_DATA 0x04 // p.7
#define VEML7700_ID 0x07 // p.7

VEML7700.cpp CPP

example.ino CPP

Reads scanned & non-English PDFs

Every register cites its source page

Ships the .h, .cpp and a runnable example

NATIVE SDK

Build in your native SDK.

Regenerate the project you built as a full ESP-IDF, Zephyr (Nordic NCS), STM32Cube or Pico SDK project — each compiles in its own toolchain, then pushes the whole repo straight to GitHub. Not built yet: it's next on the Pro roadmap, and the waitlist survey decides which toolchain we ship first.

nRF · Nordic NCS

src/main.c

#include <zephyr/kernel.h>
#include <zephyr/drivers/i2c.h>

const struct device *i2c =
  DEVICE_DT_GET(DT_NODELABEL(i2c0));

int main(void) {
  i2c_configure(i2c, I2C_SPEED_STANDARD);
  return 0;
}

same wiring · same pins · compiled in Zephyr / NCSExport to GitHub

BOM OPTIMIZER

Optimize BOM, verified in stock.

Paste your BOM and EmbedFlow hunts for cheaper, pin- and spec-compatible alternates — then confirms every one against live distributor listings before you ever see it. The AI proposes; the distributor API decides. No hallucinated parts, no dead stock.

Live pricing & stock from 3 distributors

Pin- & spec-compatible alternates only

Every alternate links back to a live listing


        bom.csv · 24 lines
        analysis complete


        scanned 24 parts across
        3 distributor APIs
        1.8s · MPN + spec match


31%

BOM COST ↓

ALTERNATES

100%

IN STOCK

          ORIGINAL PARTCHEAPER ALTERNATESAVE


GRM188R71H104K ×48

0.1µF 50V X7R 0402

$0.021 · Murata

CL10B104KB8NNN exact

LCSC $0.004 · 8.3k stock

−42%

LM358DR ×6

Dual op-amp SOIC-8

$0.19 · TI

HA17358 spec

JLCPCB $0.048 · 12k stock

−38%

AMS1117-3.3 ×3

3.3V 1A LDO SOT-223

$0.14 · AMS

SGM2212-3.3 spec

LCSC $0.062 · 5.1k stock

−25%

verified live · LCSCDigiKeyMouser −$4.12 / unit

DEBUG INTELLIGENCE

A debugger the AI can drive.

Describe the bug in chat. EmbedFlow halts the chip over SWD/J-Link, reads registers and memory, sets breakpoints, single-steps to the fault, applies the fix, reflashes and verifies — all on real hardware.

Halt, step, resume & reset over SWD / J-Link

Live registers, memory dump & breakpoints

Reads serial + code, then fixes & re-verifies

        Debug
        J-Link · nRF52840_xxAA
        Halted (Request)


PC 0x000274be

REGISTERS

R00x00000000
R10x00000000
R20x00000200
R30xe000e100
R40x20006bec
R50x00000000
R60x00000040
R70x0002fc18
R80x00000200
R90x20006280
SP0x20006720
LR0x000274b7
PC0x000274be

MEMORY 0x20000000 64B read

2000000000 10 00 00 00 00 00 60·······`
2000000800 02 00 00 62 27 9a 00····b···
200000106a 0d 16 58 24 00 00 00j··X$···
20000018f3 8e 7b 7f e8 03 00 00··{·····
20000020e2 61 8f 0f b5 d0 00 00·a······
200000283f 98 26 1a 06 00 00 00?·&·····

INSTRUMENTATION

Everyday hardware. Expert brain.

EmbedFlow drives the gear on your bench — logic analyzers, scopes, power monitors — captures every trace as reviewable evidence, and reads it straight back into the debugging loop.

Works with $10 FX2 clones, Saleae Logic, or any sigrok-supported analyzer.

logic analyzer · I²C @ 400 kHzNAK detected

EMBEDFLOW

analyze captured waveforms…

Decoded the I²C bus at 400 kHz

Clean edges, correct clock. Two register reads ACK (0x11, 0x00) — but the write to 0x76 never gets an ACK back.

No ACK from 0x76

Master released SDA but the BME280 never pulled it low — check the address strap (SDO pin) and 3V3 pull-ups.

Try: why does 0x76 never ACK?

EMBEDFLOW PRO

EmbedFlow Pro — coming soon

The bench tier: your schematics, datasheets, and real instruments — wired into the same AI loop. Join the waitlist for early-bird pricing and the launch invite.

PRICING

Start free. Pay for what you build.

Credits cover AI generations. Flashing over USB is always free — on every board.

Free

10 AI credits / mo
1 saved project
All 48 boards
Browser (USB) flashing
Community support

Popular

Hobbyist

$15 /mo

Everything in Free
100 AI credits / mo
15 saved projects
Pay-as-you-go credit top-ups
Failed-build auto-fix — free
Wiring diagrams + pin maps
Email support

Pro

Coming soon

Early-bird pricing for the waitlist

300 AI credits / mo
Unlimited saved projects
Custom boards — schematic to board definition
Driver generator — datasheet to driver
Native SDK — ESP-IDF · Zephyr · STM32Cube · Pico
BOM optimizer
AI debugger through USB Bridge
Instruments — logic analyzer, scope & power profiler

FAQ

Questions, answered.

Around 48 boards across the ESP32 and ESP8266 families, AVR (Uno, Nano, Mega), RP2040 / Pico, SAMD and nRF52. ESP and Pico boards are proven end-to-end over USB; the rest are web-flashable and community-tested. New boards land in the open registry regularly, and anyone with a kit can submit and verify one.

Bring an idea. Leave with firmware.

Describe it, flash it, ship it — all from your browser.
